Automatic Booth

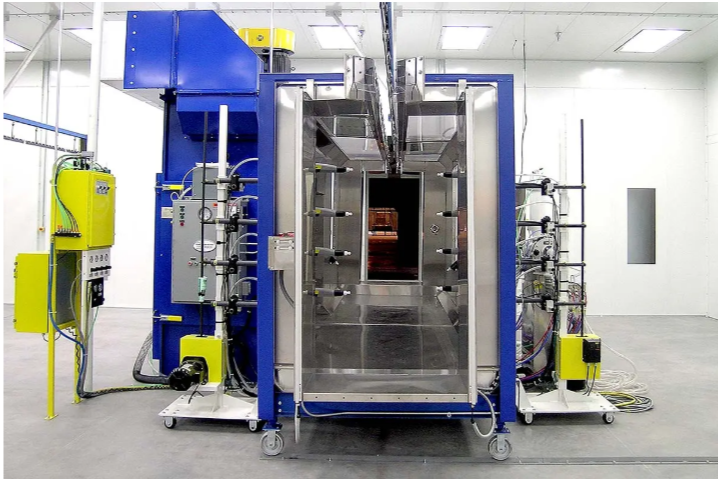

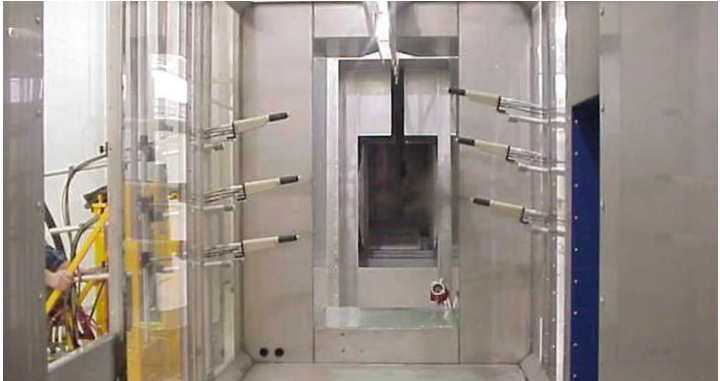

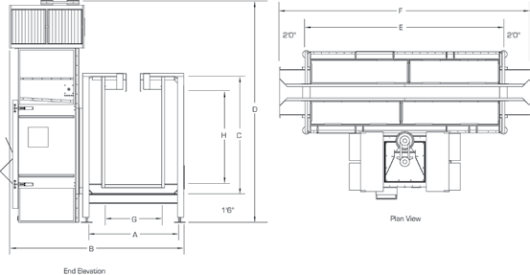

High-Production Powder Booths – GFS

📌 Application & Design:
High-Production Powder Booths from Global Finishing Solutions (GFS) are specially engineered for conveyorized, mass-production powder coating operations. Their modular design promotes optimal airflow and maximum powder transfer efficiency, which contributes to increased productivity, product quality, and profitability.

📌 Customization & Safety:
Booth configurations can be customized with features like operator shields and touch-up windows, ensuring a safe and efficient working environment.

📌 Standard Booth Features:

• 18-gauge stainless steel panels for superior durability.

• Smooth, tapered interior surfaces for easy cleaning.

• Standard 2-foot-long entrance and exit vestibules.

• Transparent polycarbonate ceiling for enhanced lighting inside the booth.

• Adjustable height leveling system.

• Overhead filtration with lightweight, removable filter modules.

• Independent, self-cleaning powder collection modules, including:

  • High-efficiency cartridge filters and redundant filters.

  • Air solenoid valve for filter maintenance.

  • Fluidized bed.

  • Integral powder fill hopper.

  • Casters for easy mobility during color changeovers.

• Deluxe control panel with photohelic pressure gauge to monitor pressure drop and automatically activate pulse-jet filter cleaning.

• Full compliance with federal, NFPA, and OSHA safety regulations.

📌 Available Options:

• Custom booth openings.

• Central air manifold with necessary regulators.

• Two-speed fan control for operating and cleaning modes.

• Roll on/off track system.

• Flame detection system.

• LED lighting.

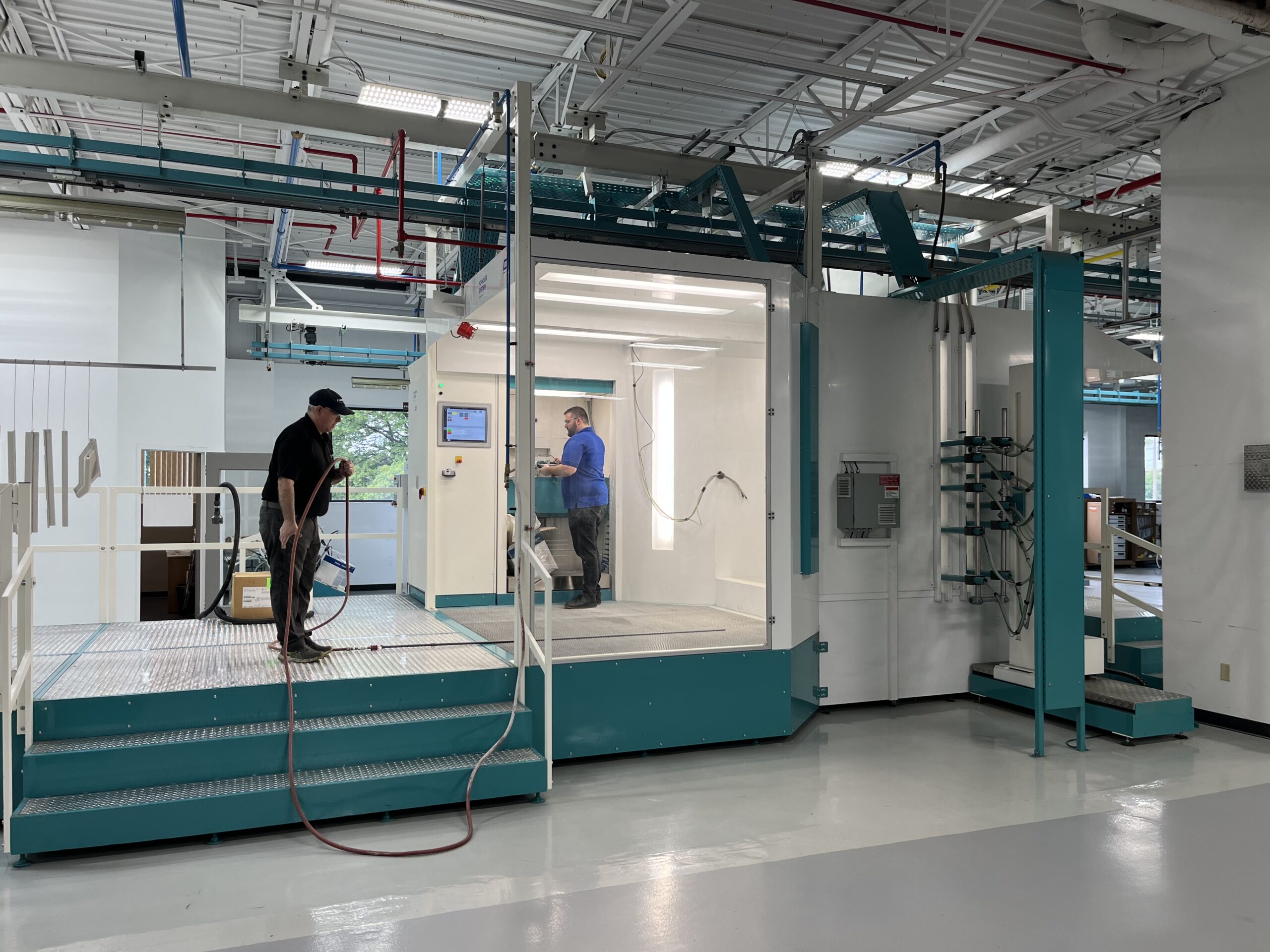

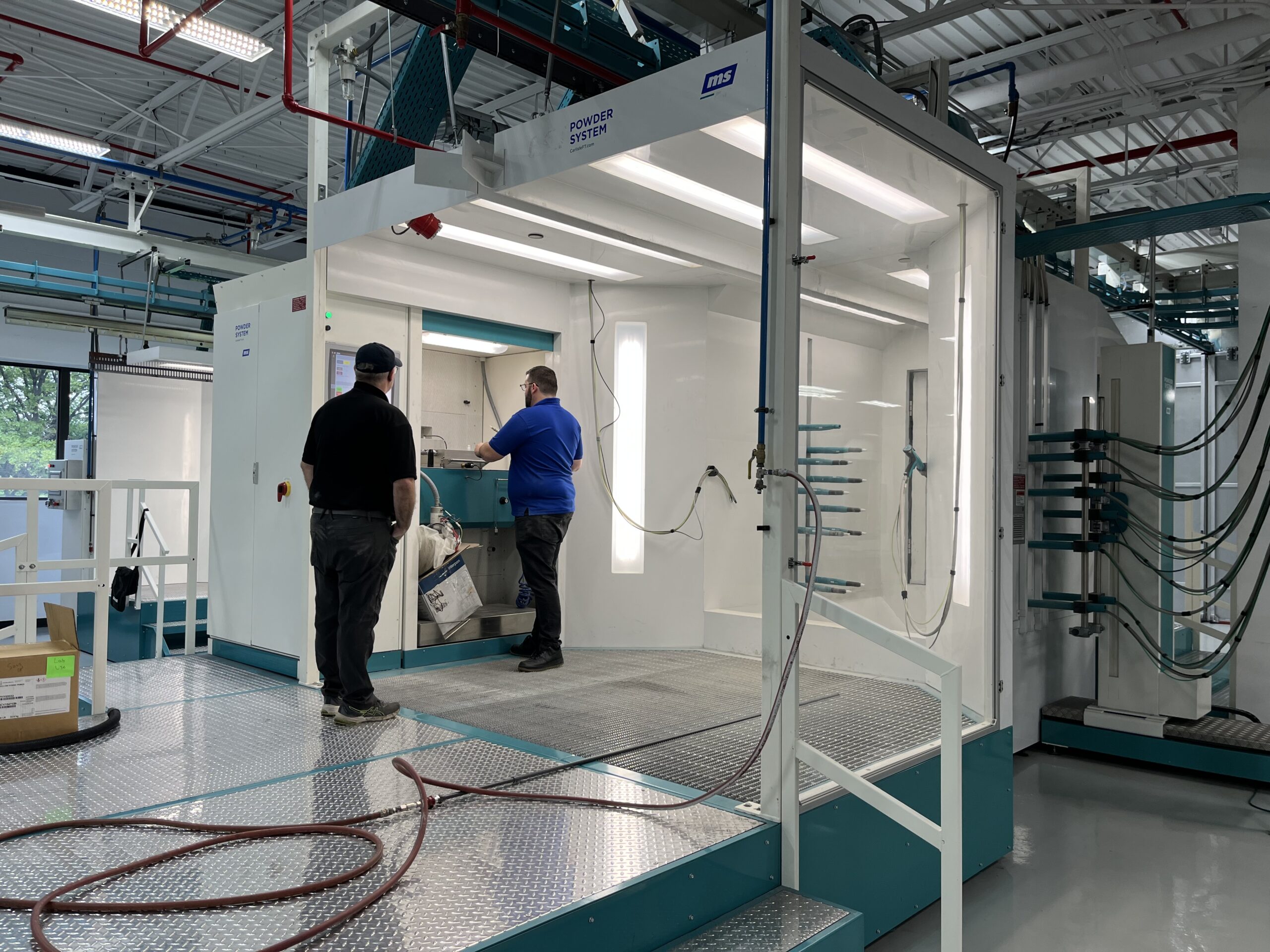

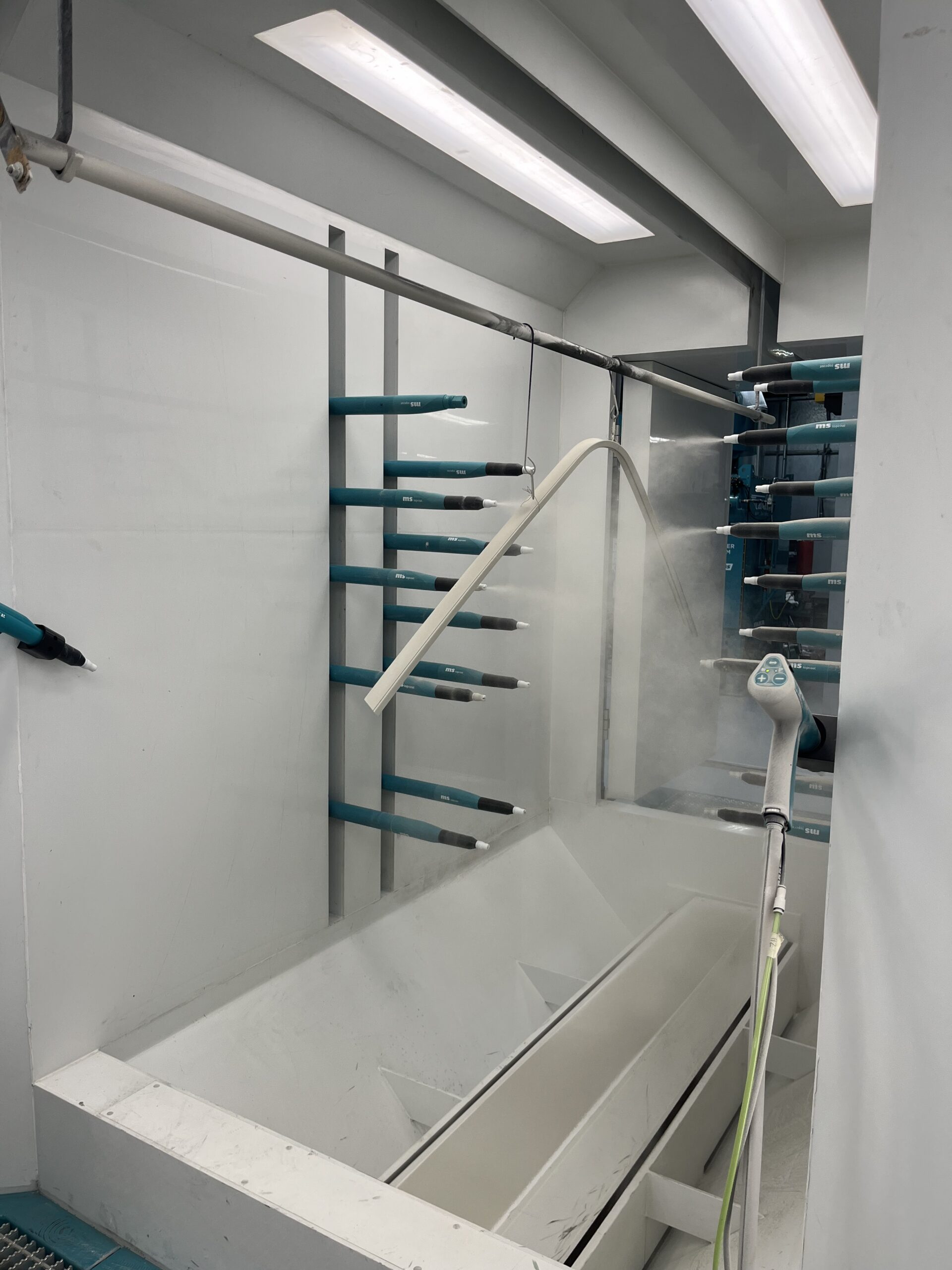

Fast Colour Change Booths – MS Powder

📌 Key Benefits:

• Fast colour change (6–10 min) → increased productivity > significantly increasing production efficiency and reducing downtime.

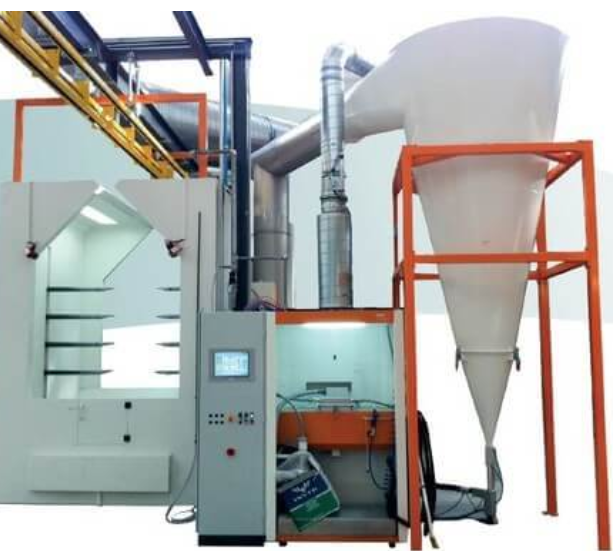

• High System Efficiency: The unique cyclone design achieves up to 97% efficiency > reduce power waste

• Efficient Construction: The sandwich wall booth design minimizes powder buildup on booth walls, enhancing application efficiency and reducing maintenance.

• Material Optimization: Low volumes of powder in the system support optimal material utilization, leading to reduced waste.

• Enhanced Visibility: Bright LED lighting throughout the booth improves visual inspection and manual coating reinforcement.

• Energy Savings: The idle mode automatically activates when no parts are detected, helping to conserve energy and reduce wear on the system.

• Quiet Operation: Operates at noise levels typically below 80 dB, creating a more comfortable working environment.

📌 Booth Configurations

Fast Colour Change Open (FCO) Booth

• Open design for easy access to control center and powder kitchen.

• Manual coating stations with adjustable downdraft suction.

• Can be configured for pre- or post-automatic guns—or both.

• Designed for various product sizes; allows robotic and lift integration.

• Excellent booth illumination.

Fast Colour Change Closed (FCC) Booth

• Compact footprint for space-limited areas.

• Options for powder kitchen or hopper setups.

• Manual stations on both sides with closeable doors.

• Reclaims overspray powder; well-lit interior.

Fast Colour Change Smart (FCS) Booth

• Most compact and cost-effective option.

• Ideal for automatic gun applications and wood/MDF coating.

• Powder kitchen or hopper design available.

• Smaller cyclone and filter requirements.

• Best suited for automation-only workflows.

📌 Comparison Table

📌 Why choose this system?

• Designed for short runs with frequent colour changes.

• Easy to integrate into automated or manual lines.

• Reduced production costs, fast return on investment.

Ready to revolutionize your powder coating process?
✨ Contact us today to learn how the automatic booth can boost your productivity.
