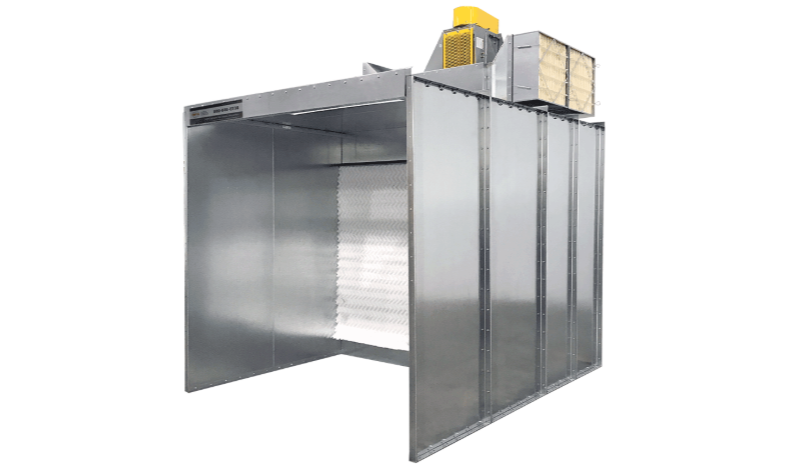

Manual Powder Coating Booth

Powder Booth by Global Finishing Solutions (GFS) are cost-effective environments ideal for small batch powder coating applications. These booths are designed to capture large amounts of powder overspray using a two-stage filtration system and feature an open-front design to conserve floor space and facilitate easy part handling.

📌 Key Features:

• Construction: 18-gauge galvanized steel panels.

• Interior: Smooth surfaces for easy maintenance.

• Filtration:

  • Primary filtration system with filters, grids, and a manometer for maintenance.

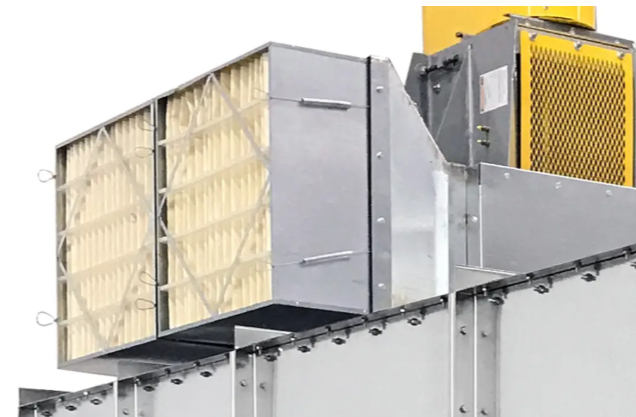

  • MERV 14-rated redundant filters.

• Fan: High-performance, direct-drive plug fan with TEFC motor.

• Lighting: Four-tube, T8 LED light fixtures.

• Compliance: Meets OSHA, NFPA, and federal safety regulations.

📌 Available Options:

• White pre-coated panels.

• Extra sidewall or ceiling lights.

• HEPA filters.

• Electromechanical control panel.

📌 Filter Types:

• Primary Filters: GFS Wave® Roll Filter or Panel Filter.

• Redundant Filters: MERV 14 rated.

📌 Models & Specifications (Partial Summary):

• Booths available in widths from 8 to 20 feet.

• Various depths (6′, 9′, 12′) and heights (8′, 10′).

• Fan sizes from 6,400 to 20,000 CFM depending on booth size.

• Motors range from 3 HP to 7.5 HP.

• Lighting quantity and fan clearance also vary by model.

Each model is listed with internal and external dimensions, airflow capacity, fan specs, and lighting details to help match the booth to the user’s application.
