Power & Free Conveyor – Dual‑Track Overhead System
📌 Product Overview

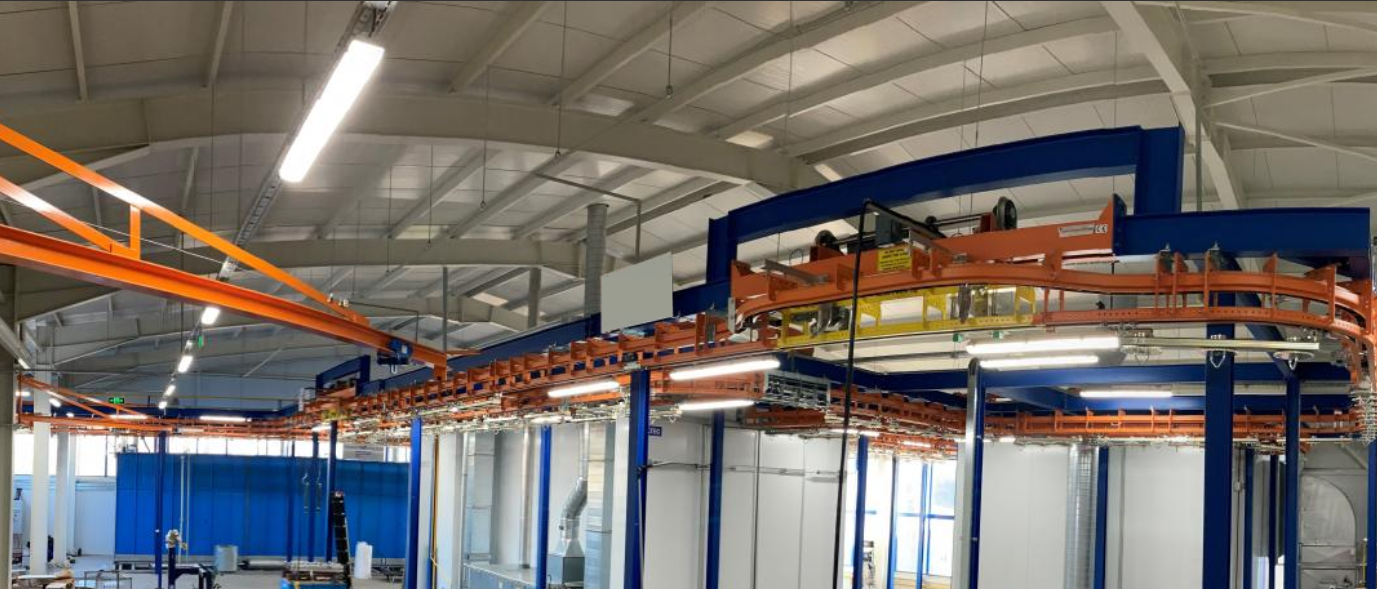

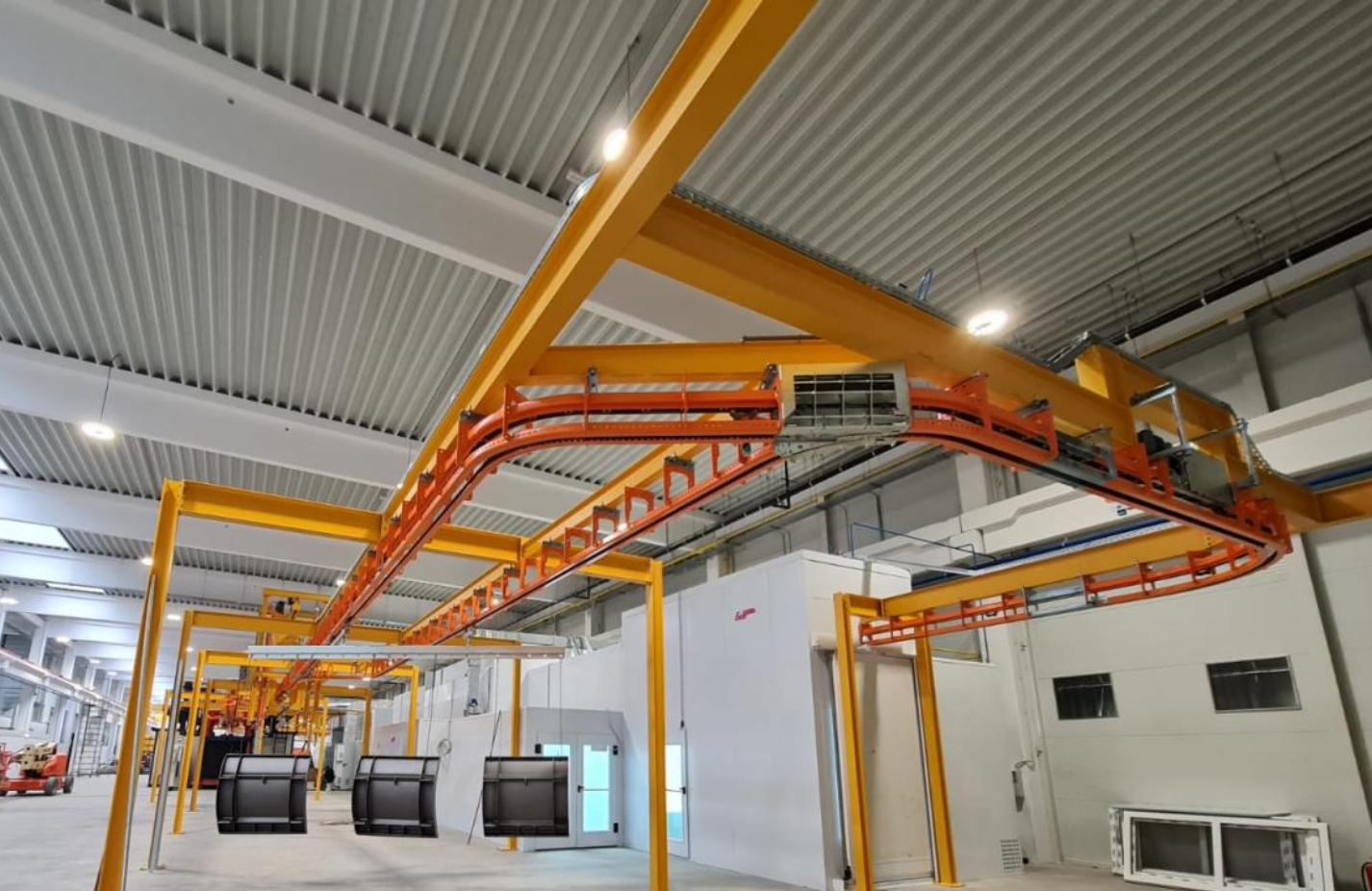

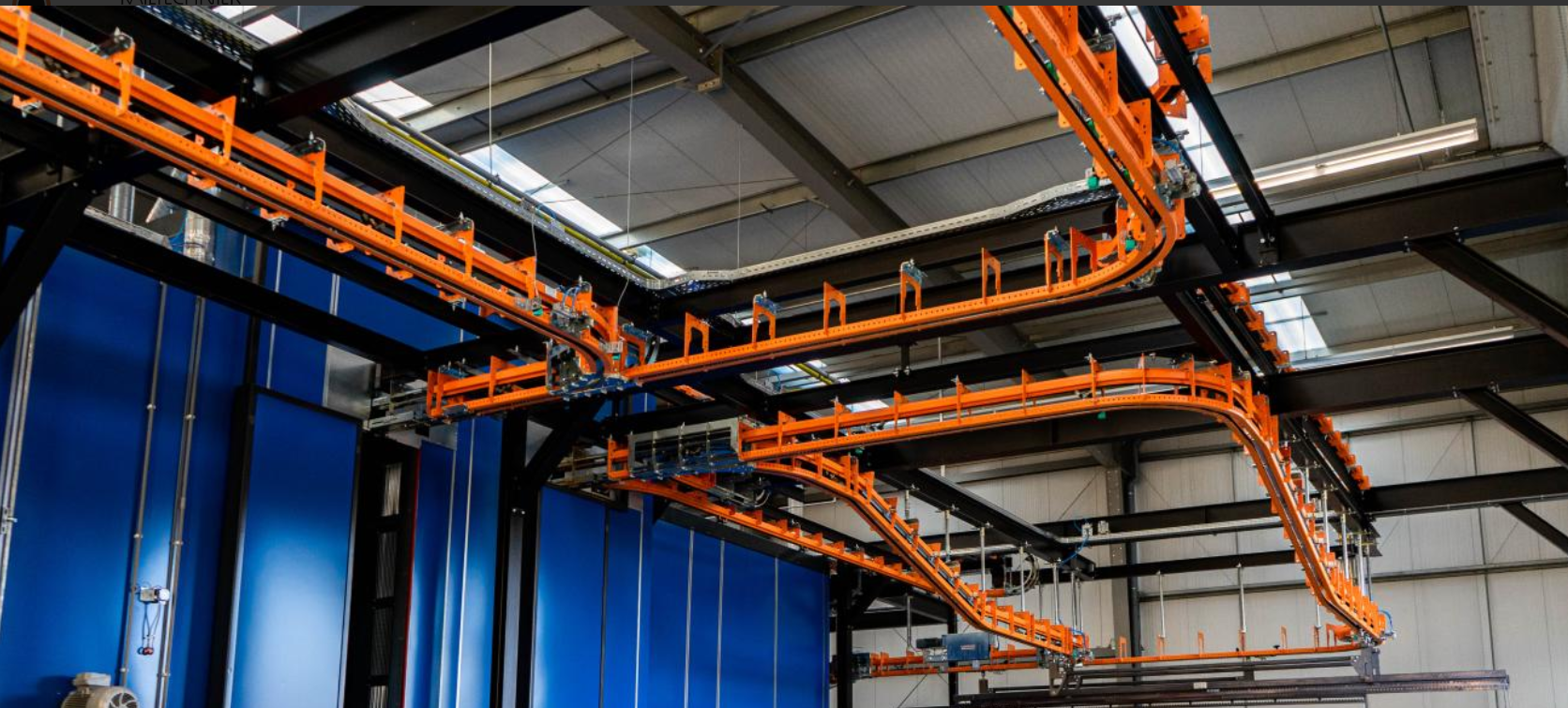

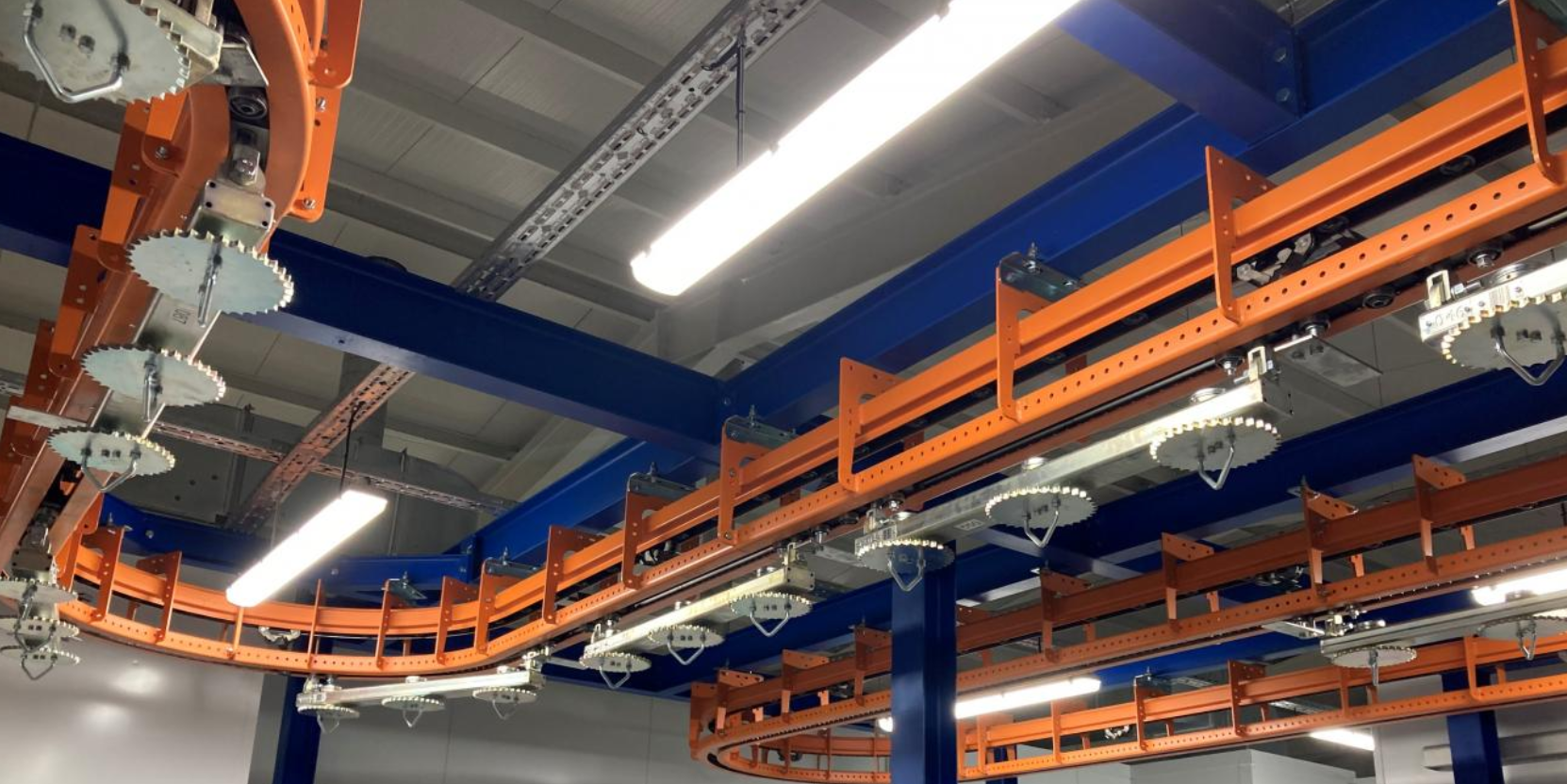

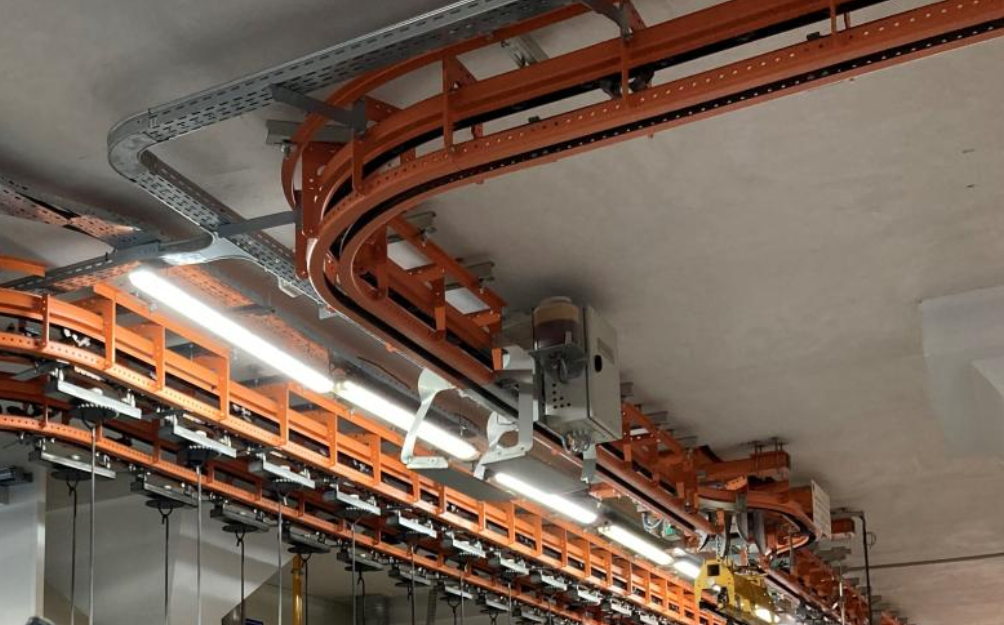

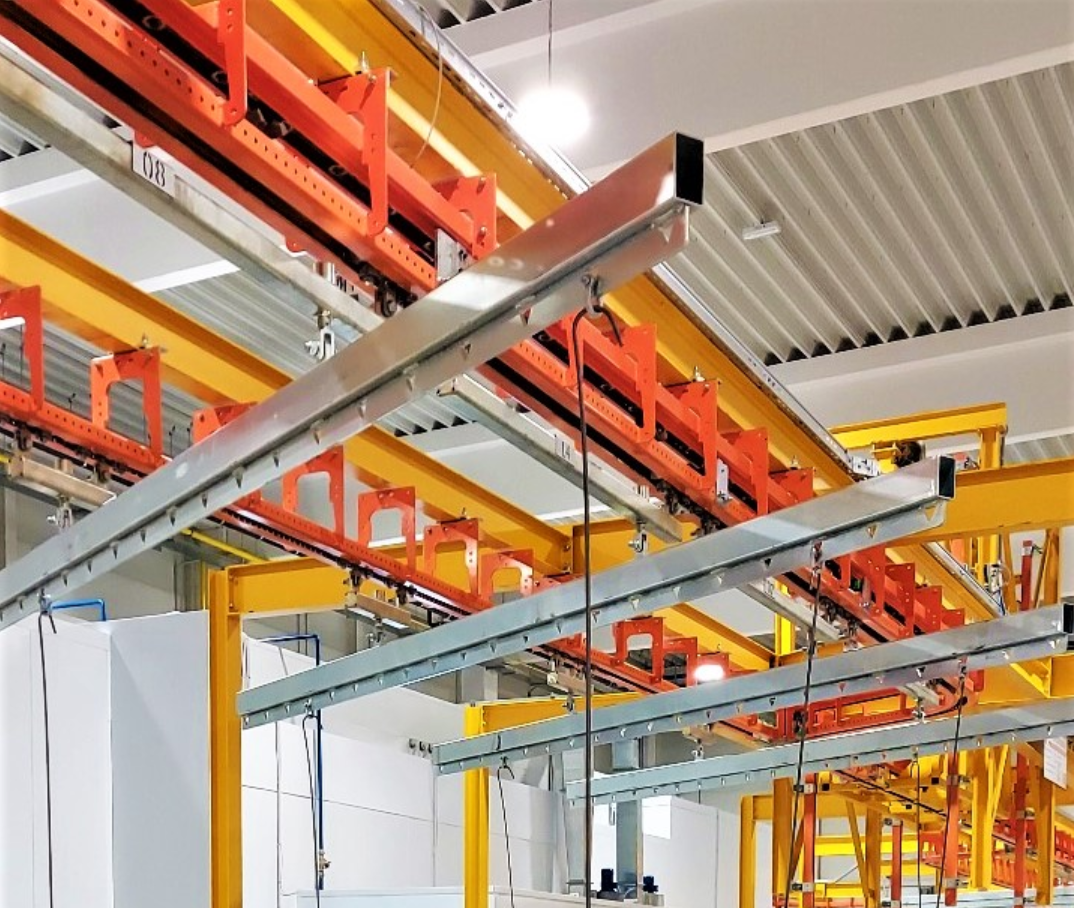

The Power & Free conveyor features a dual‑track overhead system: a powered upper rail (Power) for chain drive and a free lower rail (Free) for trolleys. It enables independent movement, on‑line accumulation, and carrier routing, ideal for complex material handling.
📌 Key Benefits
- Independent carrier transport with automatic stopping capability.
- On‑line accumulation behind stop stations without halting overall system.
- Flexible switching and routing to alternate paths or spurs.
- PLC-based control with touchscreen and remote access options.
- Modular bolted track structure – simplifies installation and modifications.
📌 Technical Specifications (typical models)
Rail Configuration | Max Load per Trolley | Max Chain Pull |
3″ (light) | 120 lb (56 kg) | 3,500 lb (1,630 kg) |
4″ (standard) | 1,200 lb (545 kg) | 4,000 lb (1,820 kg) |
6″ (heavy duty) | 3,500 lb (1,588 kg) | 6,500 lb (2,948 kg) |
📌 Typical Applications

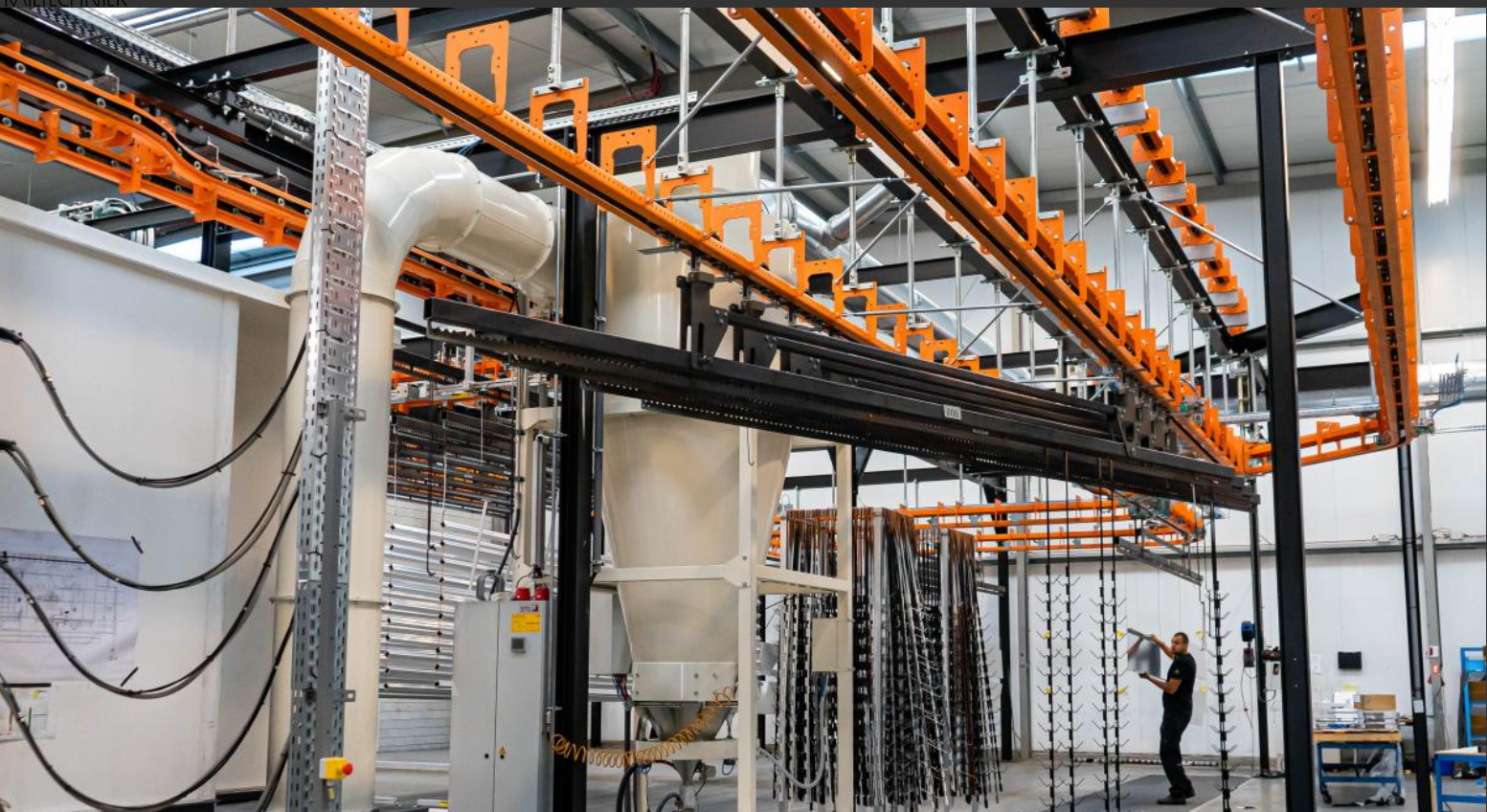

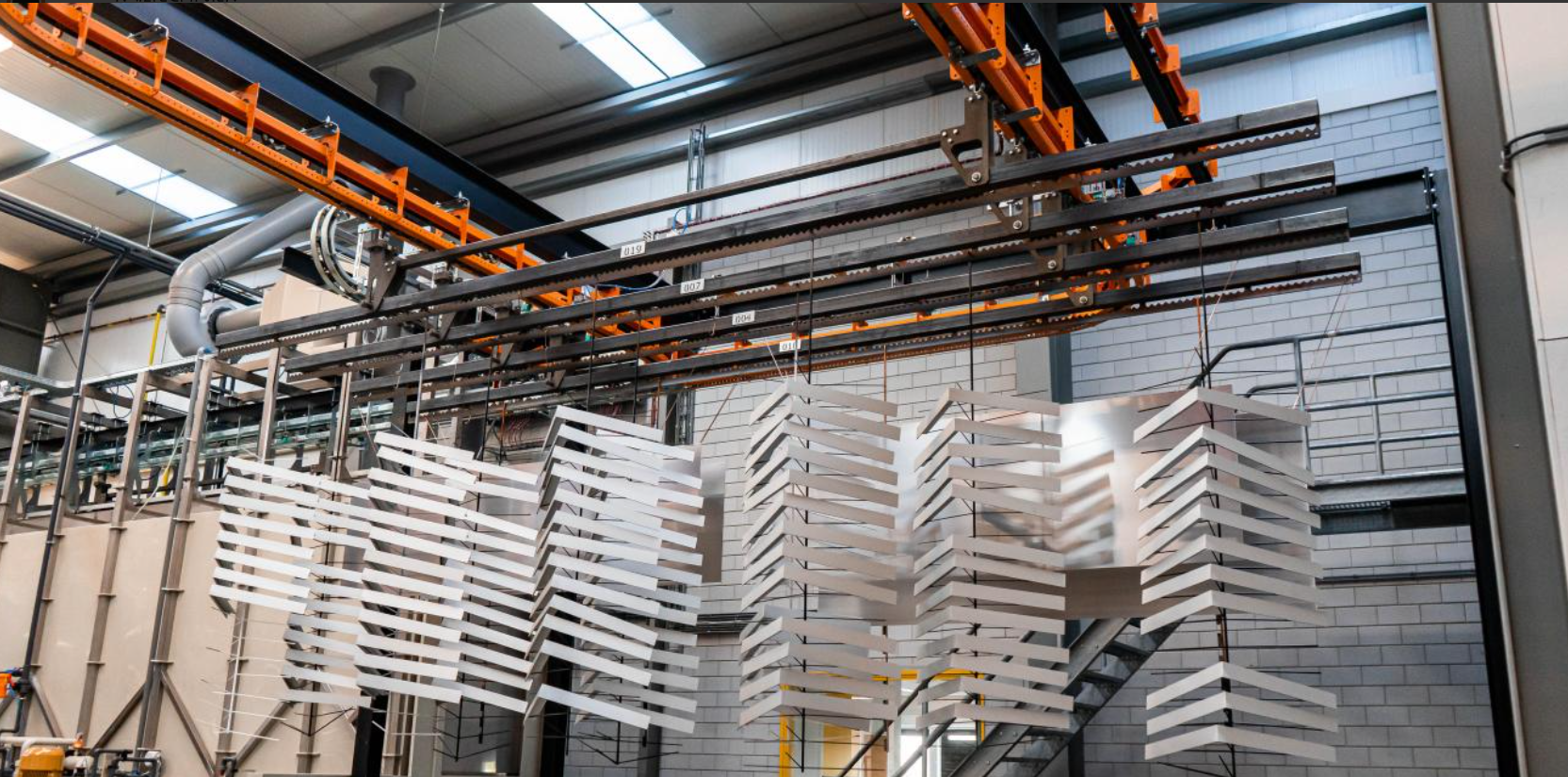

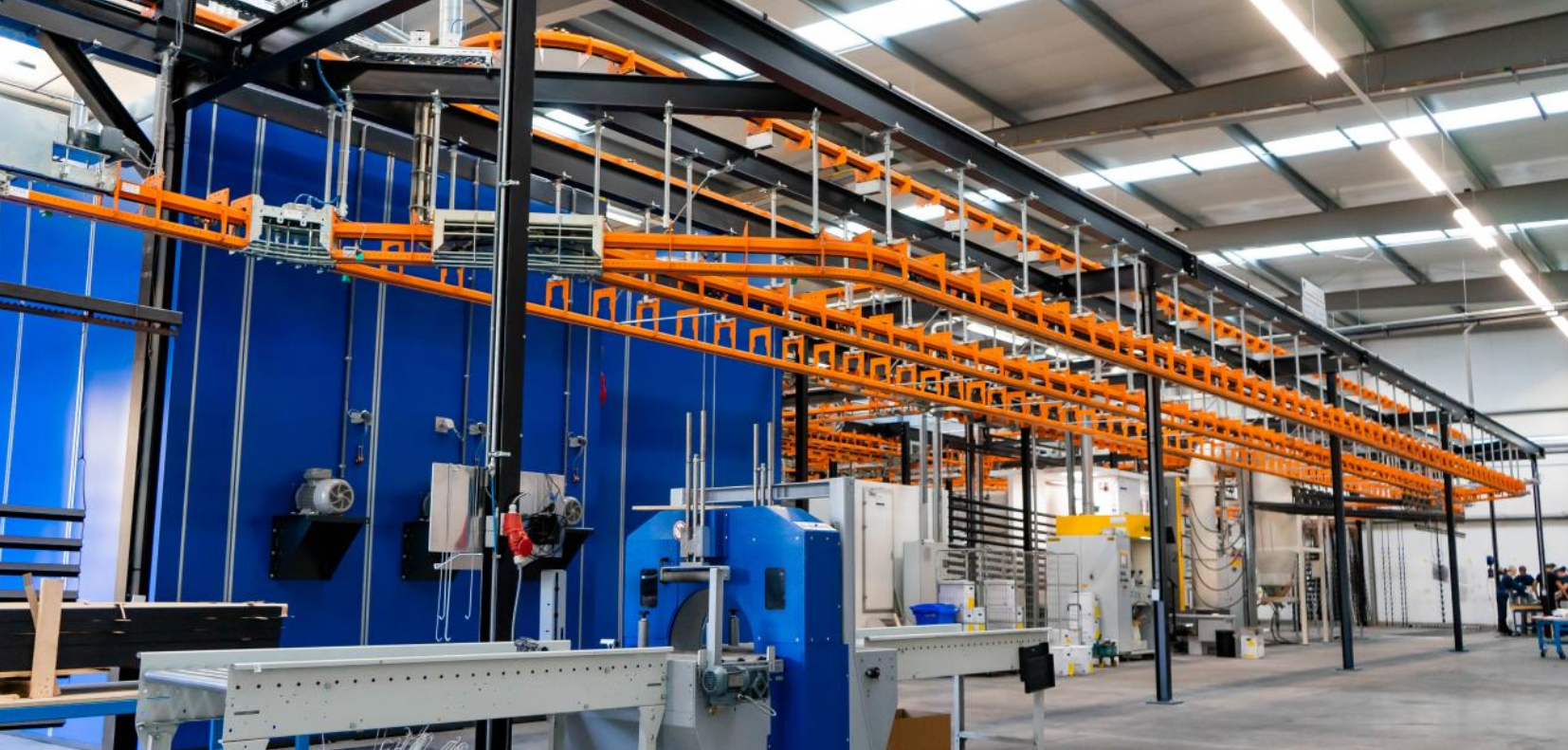

- Paint lines or heat treatment (oven, powder coating)
- Automated assembly with part sorting
- Buffer zones and high-density dynamic storage
- Product sequencing in complex logistics flows
- Suitable for harsh environments: dust, heat, or humidity
Ready to revolutionize your powder coating process?
✨ Contact us today to learn how the conveyor Power and Free can boost your productivity.
