Elite 5+ Manual Powder Coating System
Fast. Precise. Ergonomic.
The Elite 5+ is a next-generation manual powder coating system designed to boost performance and simplify your workflow. Whether you’re using a vibratory box feed or a fluid hopper, the system supports single or dual applicators and offers flexible hose and cable lengths to fit your setup.
30-Second Color Change
Thanks to its automatic cleaning system and built-in air purge valve, color changes are fast—as little as 30 seconds—helping you maximize productivity with minimal downtime.
✅ Key Benefits:
- Ergonomic, ultralight spray gun minimizes operator fatigue
- On-gun controls for easy powder flow and program adjustments
- IP64 FM/ATEX-rated controller — safe for in-booth operation
- Intuitive 7” color touchscreen with multilingual support
- Preloaded programs for first coat, recoat, metallics, and complex parts
- Storage for up to 96 user-defined programs
- Patented corona feedback system ensures optimal coating quality without add-ons
Performance That Delivers
- Powder output: Up to 450 g/min
- Output voltage: 100 kV
- Gun weight: Only 458 g (16.2 oz)
- Power supply: 100–240 VAC / 50–60 Hz
- Air pressure: 6 bar (90 psi)
- IP64 protection rating
Smart Accessories
- Nozzle extensions (flat or round, 150 mm / 300 mm)
- Injector rod for low-air powder feed
- Quick-adjust powder flow
- Diagnostic tools for cascade and control systems
📦 Available Configurations:

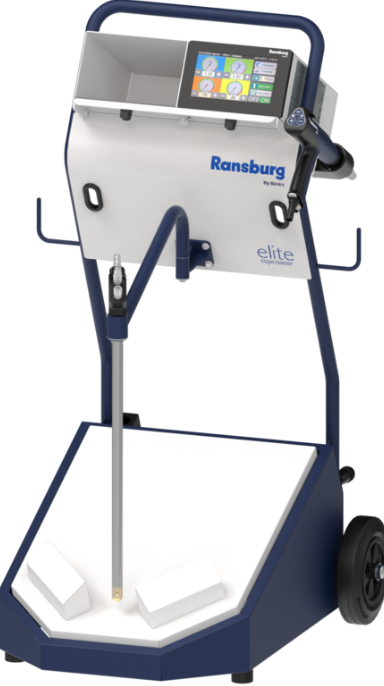

- Vibratory Box Feed (VBF) → powder feeds directly from original packaging.

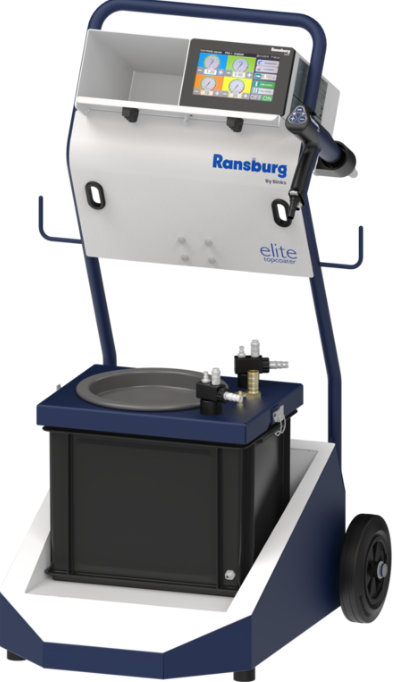

- Fluid Hopper (FH) → adjustable powder flow with injector rod.
- Configurations available with single or dual guns.
- Various cable and hose lengths available.
More features
- Injector rod for low-air powder feed
- Powder feeds directly from the original packaging
- Powder feed with quick, adjustable flow rates
- Diagnostic functions for cascade and control device
- ATEX/FM compliant
🎯 Ideal Use Cases:
- Manual powder coating operations.
- Frequent color changes.
- Applications on complex or metallic parts.
Ready to revolutionize your powder coating process?
💡 Contact us today to learn how the Elite 5+ Manual Powder Coating System can boost your productivity.
